Optics for UV Laser Applications_Eksma Optics
ㆍ작성자: 전재필	ㆍ작성일: 2020-05-08 (금) 16:07	ㆍ조회: 719

High LIDT AR Coatings

The plates in EKSMA Optics ion-beam sputtering coating chambers are spinning… And new products are being developed every month!

We have expanded the list of IBS coated catalog optics with new components designed for high power UV laser applications.

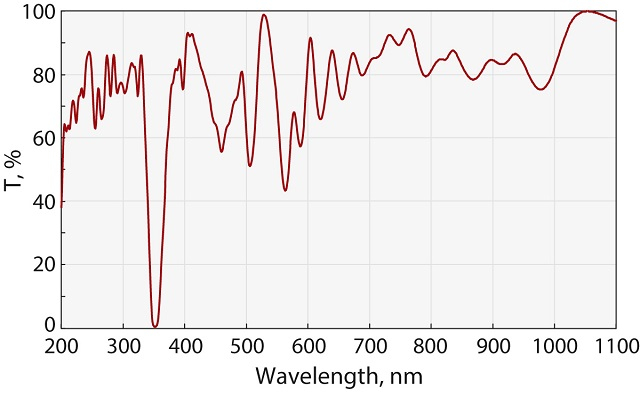

Nd:YAG LaserLine Harmonic Separators with High Transmission

Reflection: R>99.5% at 355 nm, R>99.0% at 266 nm, transmission: T>98% at 532 nm, T>99% at 1064 nm

High LIDT: >1 J/cm²at 266 nm, >5 J/cm² at 355+532+1064 nm, 10 ns, 100 Hz

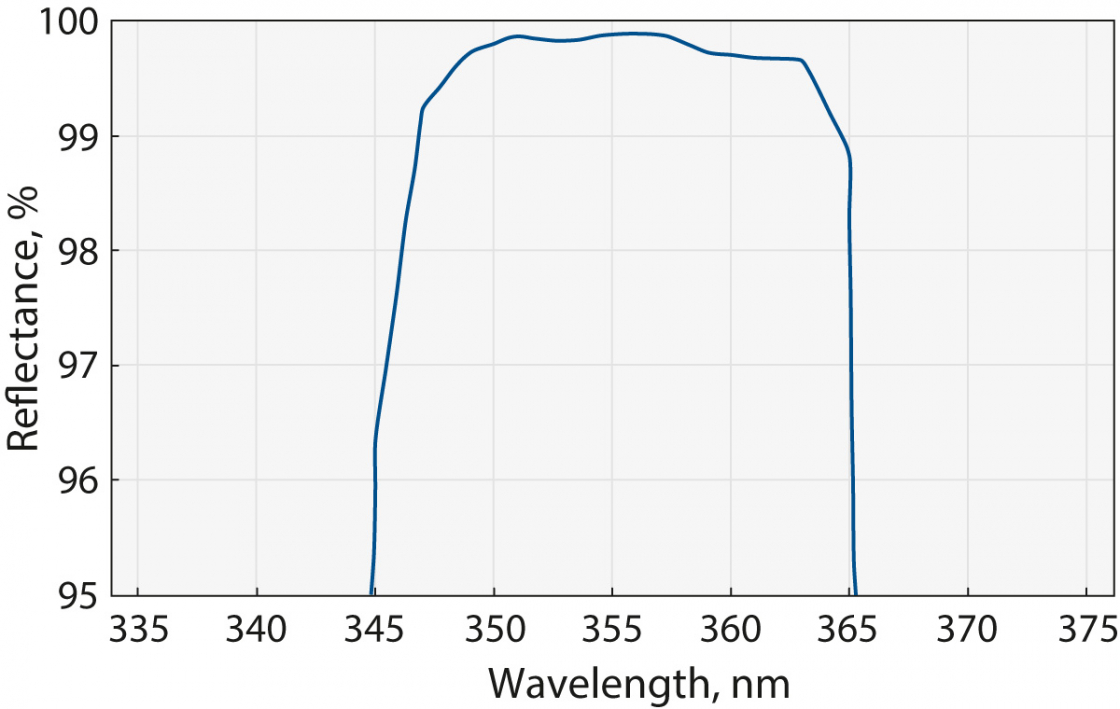

High Power Laser Mirrors for Nanosecond Applications

Reflected wavelength: R>99.8% at 355 nm, AOI = 0° or 45°; mirrors for other Nd:YAG harmonics available

High LIDT: >10 J/cm² at 355 nm, measured at 10 ns, 100 Hz

Advanced Coatings based on Ion-Beam Sputtering Technology

EKSMA Optics ion-beam sputtered coating facility allows us to meet the most critical demands on laser optics.

Our optical engineering team can design and develop highly customized optical components, contact us to discuss your requirements.
